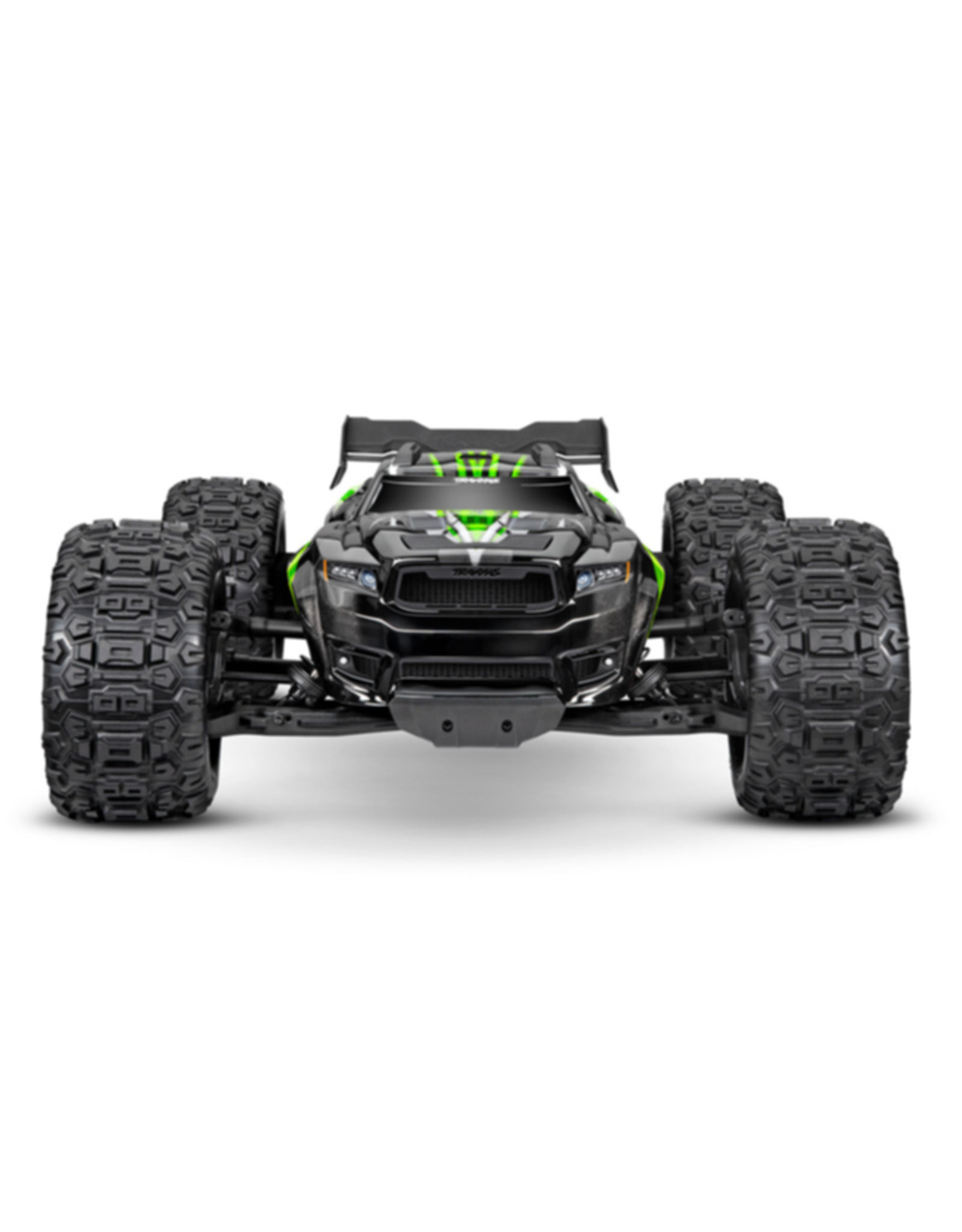

TRA95076-4 1/8 SLEDGE 4WD BRUSHLESS MT GREEN

$699.99
Availability: Out of stock

Features

  • VXL-6s Waterproof Electronic Speed Control
    • 6s LiPo compatible
    • Integrated cooling fan
    • Real-time telemetry via Traxxas Link™
    • 3-LED status indicators
    • Powered accessory ports
    • 10-gauge silicone wire
    • Integrated protection circuits
  • Velineon® 2000 kV Brushless Motor
    • 4-pole 2000 kV
    • 5 mm output shaft
    • Finned can for better heat dissipation
    • Aluminum motor cradle mount
      • Supports entire motor length
      • Reduces flex for longer gear life
  • Up to 70+ mph with Two 3s LiPo Batteries (sold separately)
  • Traxxas Stability Management®
    • Helps prevents spinouts and loss of control
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System
    • TQi 2-channel transmitter
    • Traxxas Link enabled
    • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
    • Programmable Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
  • Drivetrain
    • Full-time 4-wheel drive
    • Heavy-duty steel driveshafts
    • Large 8 mm steel stub axles
    • Steel dogbone center driveline
    • Protective rubber boots on differential inputs
  • Transmission
    • Mod-1 pinion and spur gears
    • Fixed gear mesh system
    • Torque-Biasing Center Drive
  • Differentials
    • Heavy-duty sealed 4-gear design
    • Large scale steel ring and pinion gears
    • Large 8 mm output shafts
    • Steel drive cups
    • Easy access bulkheads
  • GT-Maxx®Shocks
    • Longer rear shocks for more travel
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • Large-diameter damper shaft
    • Lower seal cartridge with dual X-rings
    • Height-adjustable spring retainer
    • Lower spring perches bolted on
  • Suspension
    • Thick 5 mm 6061-T6 aluminum shock towers
    • Performance-optimized geometry
    • Ultra-tough composite arms
      • Made from our strongest cold-weather material
      • Molded insert for clean look
      • Rear rock deflectors
      • Press-in hinge pins to reduce play
    • Oversize molded toe and camber links
    • Heavy-duty C-hubs with oversize bearings
      • Stronger than conventional designs
      • Require no adjusments
    • Multiple mounting points for suspension tuning
  • Chassis
    • 3.2 mm ribbed aluminum chassis
      • Formed edges for improved strength
    • Thick aluminum T-Bar™ for added rigidity
      • Stronger than round bars
    • High-strength buttressing on shock towers
    • Rugged locking battery compartment with quick-release door
    • Low-CG design for improved handling
    • Interlocking components for tight tolerances
    • Tough front and rear bumpers double as skid plates
    • Hidden wire management for clean appearance
  • Clipless ProGraphix® Body
    • One-handed clipless body mounting system
    • Rigid internal frame
    • Molded body reinforcements for tear-through protection
    • Protective roof skids
    • Rugged high-downforce rear wing
  • Steering
    • Powerful 2275 metal gear servo
      • 347 oz-in torque
      • Fully waterproof
    • High-throw bellcrank steering design
    • Heavy-duty servo saver with aluminum posts
    • Metal servo horn
  • Wheels and Tires
    • TSM-rated construction resists ballooning
    • Huge 6.7″ Sledgehammer all-terrain tires
    • Tough 3.8″ black wheels
    • Splined 17 mm aluminum axle hubs

Model Specs

Model Name: Sledge
Model Type: Monster Truck
Model Speed: 70+ mph with 6s LiPo battery and optional gearing
Model Skill Level: 4
Scale: 1/8
Weight: 12.74 lbs (5.77 kg)
Length: 23.78 inches (604 mm including wing)
Width: 18.10 inches (459 mm)
Front Track: 18.10 inches (459 mm)
Rear Track: 18.10 inches (459 mm)
Height: 8.43 inches (214 mm)

Wheelbase: 15.10 inches (384 mm)
Center Ground Clearance: 1.95 inches (50 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal): 17.2:1
Gear Pitch: 1.0 metric pitch
Servo(s): 2275 digital metal-gear waterproof (347 oz-in)
Radio System: TQi™ 2.4 GHz transmitter with TSM® receiver
Battery Compartment Specs: 181 mm X 57 mm X 45 mm

Motor Specs

Motor Name: 4-pole 2000 kV
Motor Type: 2000 kV sensorless brushless
Motor Weight: 14.32 oz (406 g)
Motor Length: 2.97 inches (76 mm)
Motor Diameter: 1.65 inches (42 mm)
Motor Shaft Size: 5 mm
Motor Connector Type: Traxxas 6.5 mm bullet connectors

ESC Specs

ESC Name: VXL-6s
ESC Type: Brushless
ESC Case Size: 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
ESC Weight: 7.30 oz (207 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
