ASC70029 DR10M Team Kit

$369.99
Availability: In stock (5)

AVAILABLE NOW!

Based on the successful DR10 Drag Race platform, the DR10M is packed full of features!

Overview

Features

  • Rear CVA drive shafts for more reliability
  • V2 12mm Big Bore threaded aluminum shocks

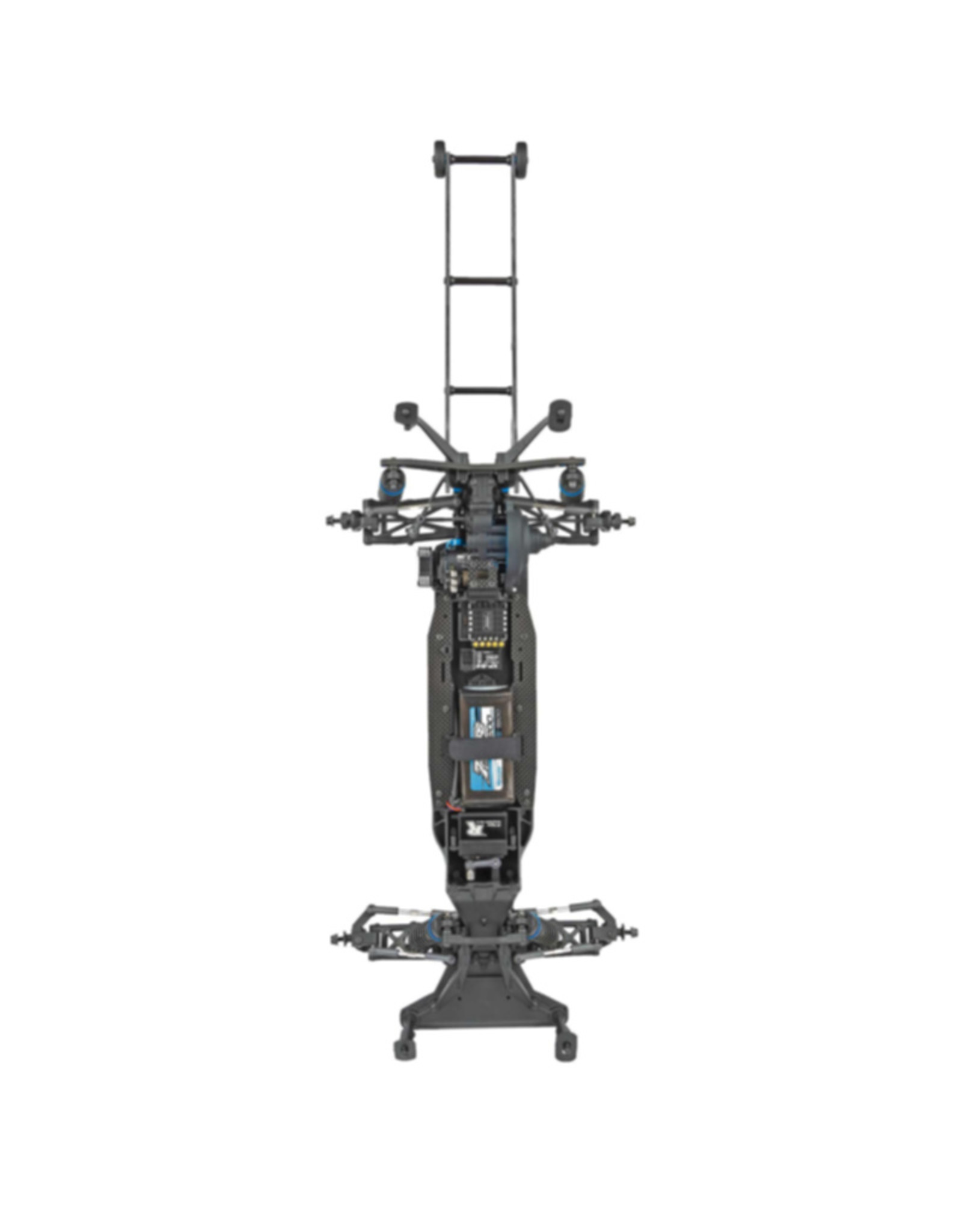

  • Low center-of-gravity chassis with multiple battery and electronics mounting configurations
  • Rigid twin deck chassis design
  • Machined aluminum rear bulkheads
  • Machined aluminum rear suspension mounts
  • Rugged steel turnbuckles for adjustable camber and front toe-in
  • Adjustable suspension geometry
  • Vertical ball ends for roll center adjustments, front and rear
  • Many Factory Team options already available
  • 28 precision ball bearings
  • Metric hardware throughout

Increase Stability, Traction and Handling with the Mid-Motor DR10M!

The mid-motor, 4-gear transmission in the DR10M RC Drag Race car offers the advantage of using motor torque rotation to apply downward force to the rear tires. These forces generate additional rear end squat for that off-the-line acceleration which offers more tire-to-surface area contact, giving the DR10M additional rear traction.

The mid-motor set up shifts the weight distribution forward, reducing front-end lift. Additionally, the motor and tires share the same rotational direction, which produces quicker forward momentum to help you get a faster time across that finish line.

The DR10M Drag Race Team Kit is based on the successful DR10 drag race platform. The DR10M Team Kit features a rear anti-roll bar, 28 precision ball bearings, fully adjustable suspension, vertical ball ends for roll center adjustments, 2.6:1 ratio gearbox with heavy-duty sealed gear differential, and externally adjustable V2 slipper clutch. The new Octalock spur gear and 11mm Octalock pads provide maximum consistency and higher torque capacity. Look for a No Prep RC Drag Racing event near you--all are welcome. With 132 feet of head-to-head action, you're sure to enjoy the day racing, running for fun, or just checking out the action.

Mid-Motor Configuration
Mid-Motor Configuration

Creates improved traction and control in the vehicles weight distribution



12 mm Big Bore Shocks
12 mm Big Bore Shocks

Adjustable threaded aluminum coil-over shock absorbers



Metal Gears
Metal Gears

All-metal gear transmission with hardened steel top shaft



Machined Aluminum
Machined Aluminum

Machined aluminum parts for increased durability



Anti-Roll Bar
Anti-Roll Bar

Optinimized anti-roll bar for superior handling



Ball-Bearing Wheelie Bar
Ball-Bearing Wheelie Bar

Wheelie Bar includes rubber tires and adjustable double-ladder wheelie bar for increased stabilization

Specifications

Ball Bearings: Full Ball-Bearings
Battery: Sold Separately

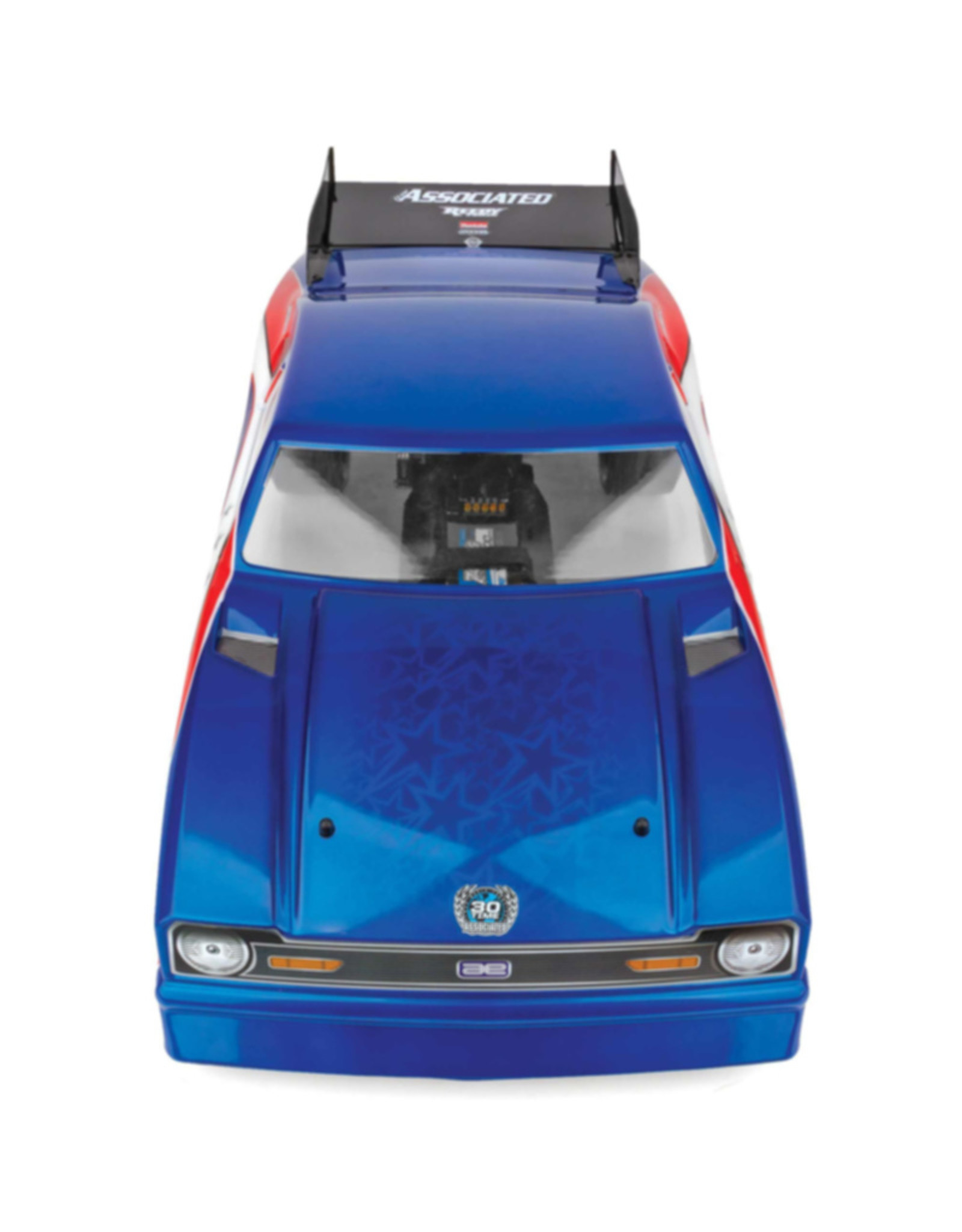

Body: Clear Lexan Body
Charger: Sold Separately
Completion Level: Kit
Drive Type: Forward/Brake/Reverse
Drivetrain: 2WD
Inner Tire / Outer Wheel Diameter: 2.2 in
Internal Gear Ratio: 2.6:1
Power Type: Electric
Product Width: 10.7" (272 mm)
Radio: Sold Separately
Receiver: Sold Separately
Scale: 1/10
Servos: Sold Separately
Speed Control: Sold Separately
Vehicle Type: Drag Car
Wheelbase: 12.9" (328 mm)
