TRA78086-4 XRT WITH 8S ESC BLUE

$999.99
Availability: Out of stock

Features

  • VXL-8s Waterproof Electronic Speed Control
    • New aggressive tune for more power at any RPM
    • 8s LiPo compatible
    • Integrated cooling fan
    • Real-time telemetry via Traxxas Link
    • 3-LED status indicators
    • Machined heat sink
    • Powered accessory ports
    • 10-gauge silicone wire
    • Integrated protection circuits
  • Velineon®1200XL Brushless Motor
    • 4-pole 1275 kV
    • 5 mm output shaft
    • Oversize aluminum heatsink for improved cooling
    • Dual cooling fans
  • Up to 60+ mph with Two 4s LiPo Batteries (sold separately)
  • Traxxas Stability Management®
    • Improves straight line acceleration and braking on low-traction surfaces
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4GHz High Output Radio System
    • TQi 2-channel transmitter
    • Traxxas Link enabled
    • 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
    • Programmable Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
  • X-Truck™ Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Heavy-duty steel CV driveshafts & axles
    • Splined aluminum center driveshaft
    • Machined aluminum stub axles
  • Transmission
    • Mod-1 pinion and spur gears
    • Fixed gear mesh system
    • Torque-Biasing Center Drive
  • X-Truck Differentials
    • Heavy-duty sealed 4-gear design
    • Large scale steel ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
    • New bulkhead and covers increase bearing support
  • Rock-Solid Motor Mounting System
    • Precise preset gear mesh adjustments
    • 4 keyed pins lock the motor in place
    • Motor retention separate from gear mesh
  • GTX™ Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • 5.2 mm damper shaft
    • Lower seal cartridge includes integrated wiper seal combination
    • Height-adjustable spring retainer
    • Heavy-duty composite shock caps with pivot balls
    • Lower spring perches bolted on

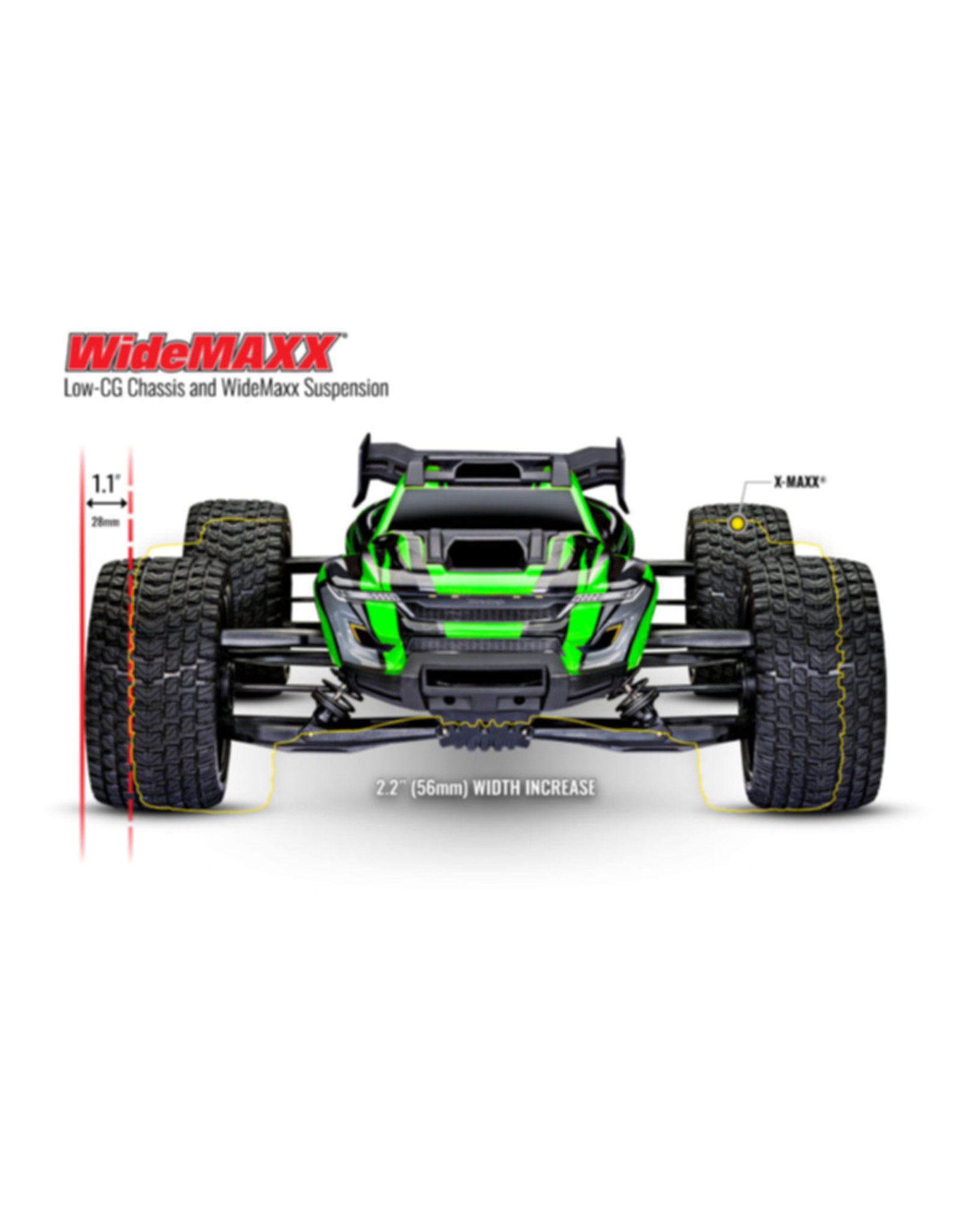

  • WideMaxx® Suspension
    • Performance-optimized geometry
    • Extra-wide suspension arms
      • Made from our strongest cold-weather material
    • Double-shear connections
    • High-strength steel suspension pins with retainers
    • 4 mm machined pivot balls
    • Fixed high-strength camber and toe links
    • Heavy-duty steering blocks and axle carriers
    • Oversized wheel bearings
  • Steering
    • Powerful 365 oz-in steering servo
    • Heavy-duty cam-style servo saver
    • Dirt evacuation channels
    • Fully waterproof
  • Ultra-Low-CG Chassis Design
    • Modular chassis with interlocking bulkheads
      • Low center of gravity for improved handling
      • Flat bottom design
      • Heavy-duty interlocking skid plates
      • High-strength buttressing on shock towers
    • Dual snap-lock battery compartments
      • Protects batteries from side impacts
      • Allows secondary battery-clip security
    • Interlocking components for tight tolerances
    • Wire management for clean appearance
  • Patent-Pending Clipless Body
    • Snaps in place in just seconds
    • Secure body latches are easy to use
    • Clipless body mounting system
    • Rigid internal frame
    • Dual high-capacity cooling ducts
    • Molded body reinforcements for tear-through protection
    • Protective top skids
    • Rugged high-downforce rear wing
  • Heavy-duty Bumpers
    • Reinforced front bumper and rear wing support
      • Absorb impact forces while retaining shape
    • Heavy-duty front bumper and support
    • Reinforced rear wing support
    • Nerf bars for side impact resistance
    • Heavy-duty wheelie bar with carry handle
  • Wheels and Tires
    • 7.4” Gravixrace tires
      • Low sidewall for sharp turn-in response
      • Thick center carcass resists ballooning at high speed
      • Lower rotational mass for faster acceleration
    • 3.8” matte black XRT wheels
    • High-strength glue and bead design
    • Huge 24 mm splined wheel hubs
  • Sealed Ball Bearings
  • Hex hardware with Rust-Resistant Black Oxide Coating

Specs

XRT Specs Side
XRT Specs Front
Length (including wing): 31.41 inches (798mm)
Front Track: 23.43 inches (595mm)
Rear Track: 23.43 inches (595mm)
Ground Clearance: 1.93 inches (49mm)
Weight: 19.70 pounds (8.94kgs) - without body
21.03 pounds (9.54kgs) - with body
23.87 pounds (10.83kgs) - with body & two 4s 6700mAh LiPos
Height: 10.15 inches (258mm) - ride height
12.12 inches (308mm) - full droop
Wheelbase: 18.9 inches (480mm)
Shock Length (front): 6.79 inches (173mm)
Shock Length (rear): 6.79 inches (173mm)
Tires (Pre-Glued): 7.4 x 3.8 inches (188mm x 97mm)
Wheels: 4.3 x 5.7 inches (110mm x 147mm)
Speed Control: Velineon® VXL-8s
Motor (electric): Velineon® 1200XL Brushless
with heat sink and dual fan shrouds
Overall Drive Ratio: 20.6:1 (20/50 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch (Spur and Pinion): Module 1.0
Chassis Structure/Material: Composite Nylon Tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Bellcrank
Radio System: TQi 2.4GHz Transmitter with TSM® receiver
Servo: Torque: 365oz. Speed: 0.17 sec/ 60 degrees(6.0V)
Top Speed: 60+ MPH with two 4s LiPo batteries and included optional gearing
Skill Level: 5
Battery Tray: 186mm x 51mm x 44mm
Required Batteries:

4 “AA” (transmitter) and 4-cell LiPo battery (x2)

Velineon 1200XL Brushless Motor Specifications
Type: 1275 kv Sensorless Brushless
Weight: 665g (23.44oz)
Length: 4.32 inches (110mm)
Diameter: 1.88 inches (48mm)
Connector Type: Traxxas 6.5mm Bullet Connectors
Velineon 1200XL Brushless Motor Specifications
Input Voltage: 8s LiPo (Max 33.6 Volts)
Case Size: 2.23in (58mm) / 2.83in (72mm) / 1.81in (46mm)
Weight: 215.5g (7.60oz)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Motor Connectors: Traxxas 6.5mm Bullet Connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports:

RX Input, Auxiliary Fan, Traxxas Accessory Port

What's included:

XRT (#78086-4) Red
XRT (#78086-4) Blue

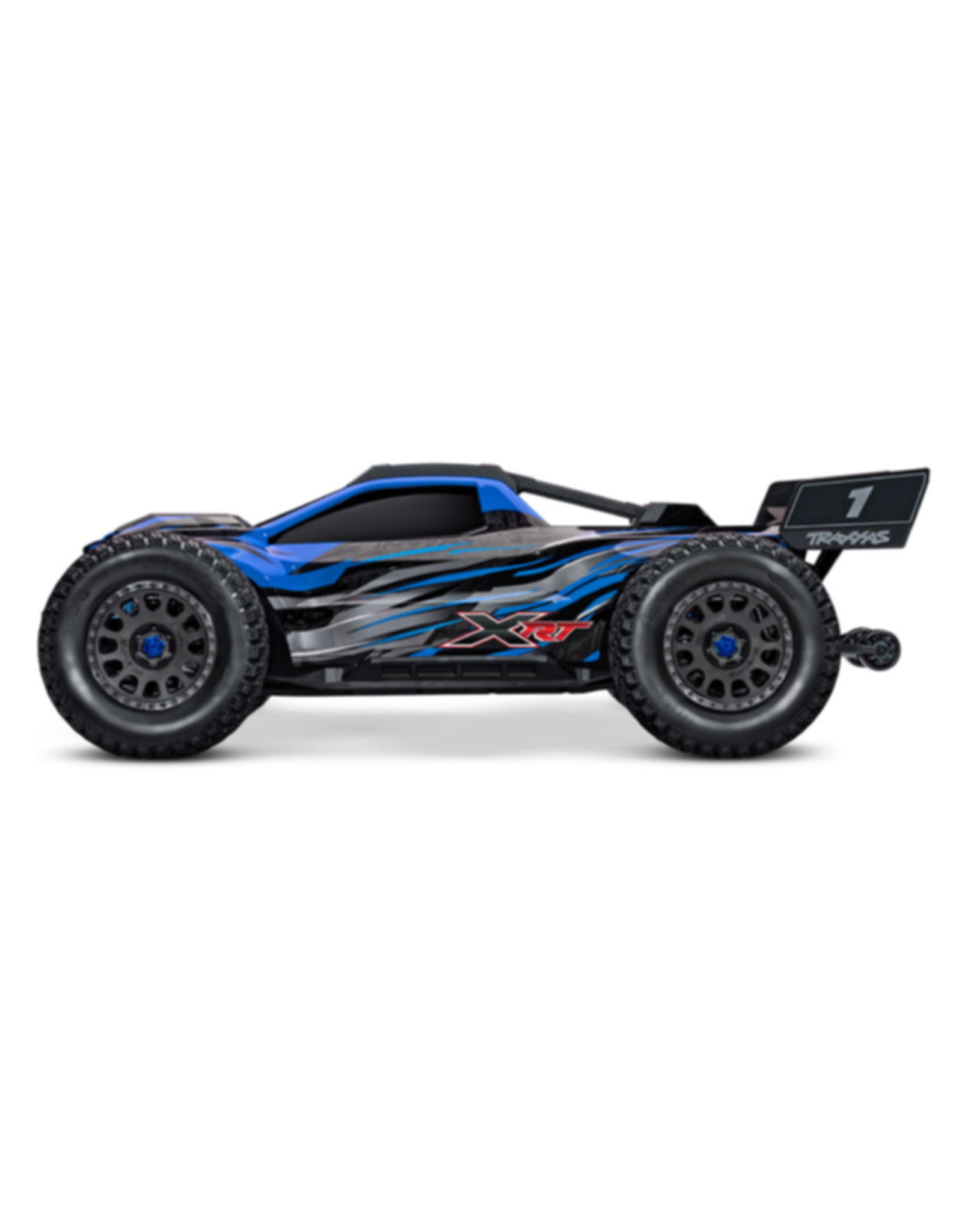

MODEL 78086-4: XRT 1/6 scale 4WD brushless race truck. Fully assembled, Ready-To-Race®, with TQi 2.4GHz radio system, VXL-8s brushless power system, and ProGraphix® clipless body.

What’s In The Box:

  • XRT, Ready-To-Race® model with Traxxas Big Block brushless motor
  • VXL-8s waterproof electronic speed control with integrated telemetry
  • Quick Start Guide
  • TQi 2.4GHz radio system
  • High quality maintenance tools
  • Optional speed gears

What You’ll Need:

  • LiPo Batteries

    Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part #2890X) or the Dual 4s Completer Pack (Part #2997).

  • LiPo Balance Charger with iD

    Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.
