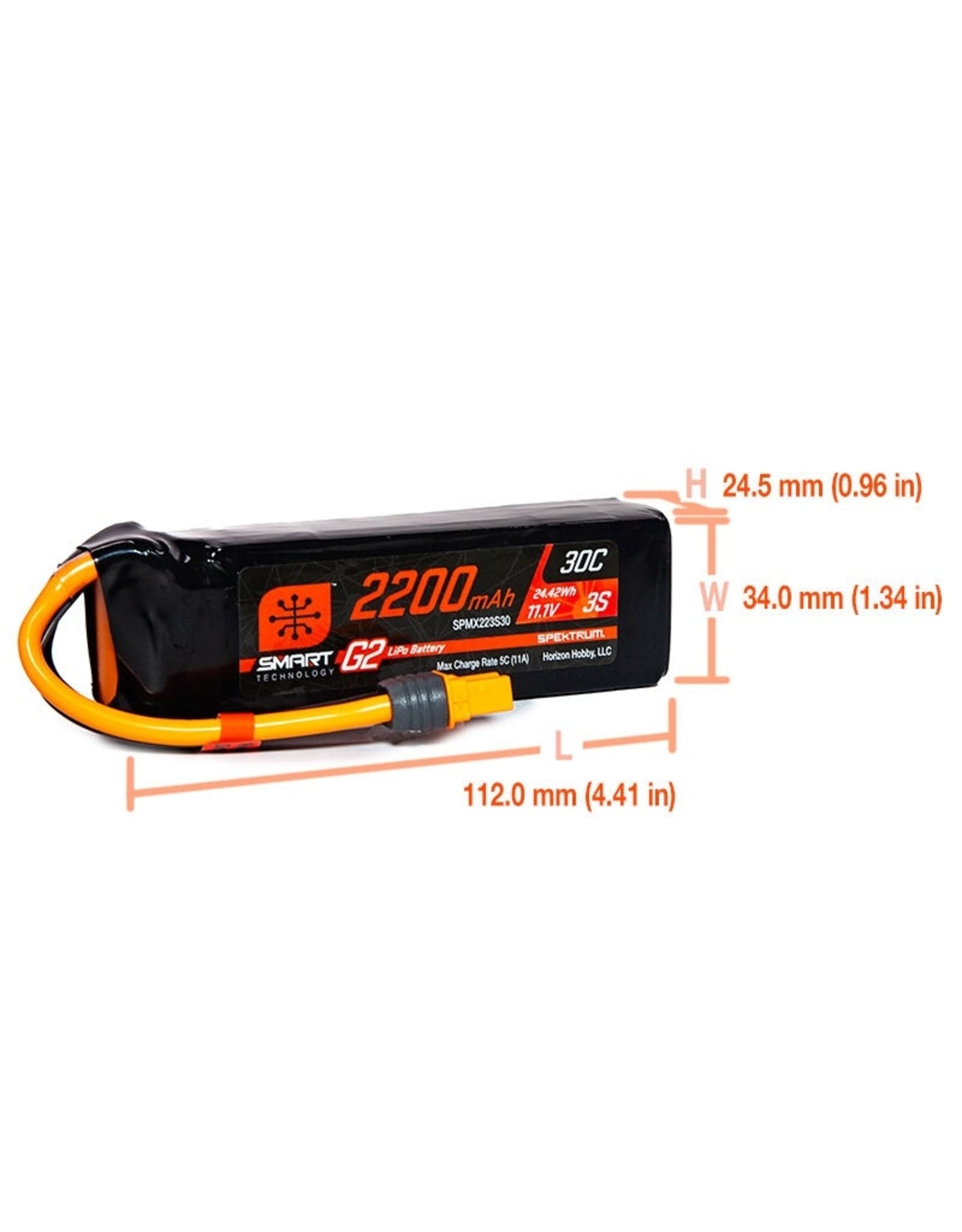

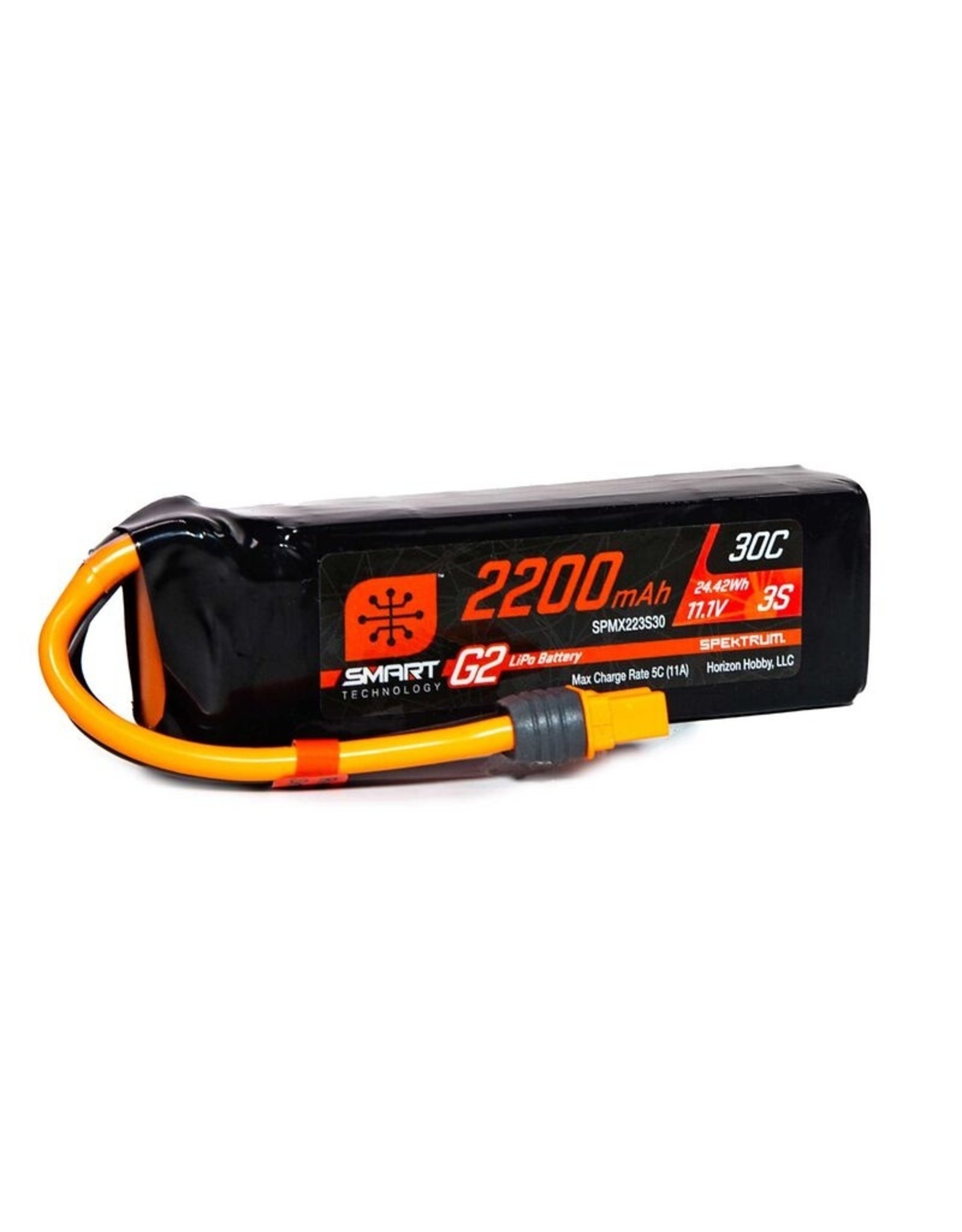

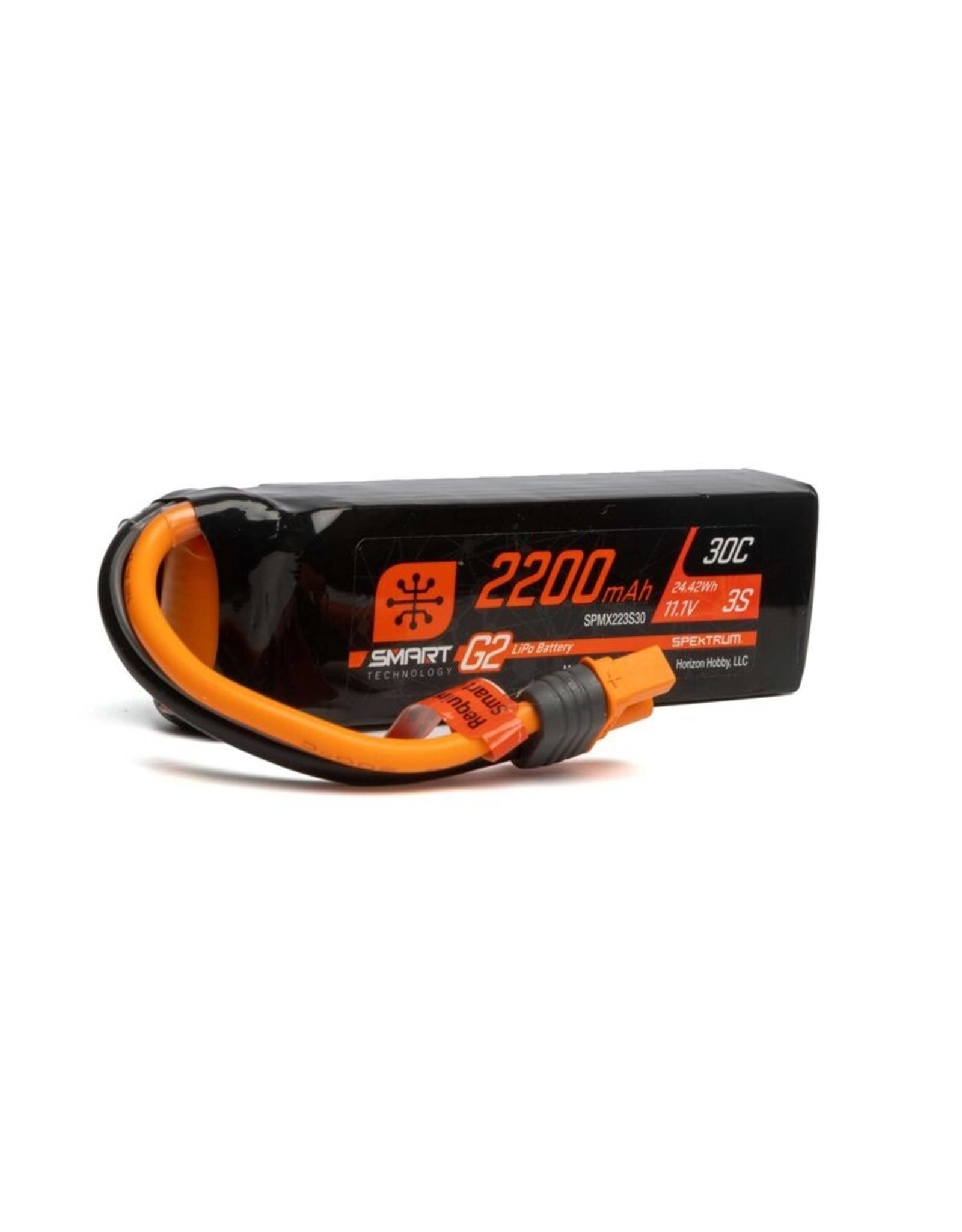

SPMX223S30 SOFT PAK2200mAh 3S 11.1V Smart G2 LiPo 30C; IC3

$31.99
Availability: Out of stock

*** All lipo batteries & such must ship ground flat rate shipping***



Product Details

Pilots and drivers enjoy more Smart benefits with Spektrum™ Smart G2 30C LiPos. Not only are charging parameters and performance data stored and uploaded automatically to Smart chargers, but no balance lead is needed — just one easy IC® connection!
Key Features
  • Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
  • Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
  • Thicker internal metal side plates protect cells and improve heat dissipation
  • Integrated microchip stores unique parameters for each battery
  • Spektrum™ G2 Smart Charger required (or earlier Smart Charger with G2 update)
Smart Battery Technology — One Smart Connection
Smart Battery Technology — One Smart Connection

When connected to a Spektrum Smart charger, a Smart G2 battery's unique parameters, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's data wire. To charge and balance the pack, you simply connect it to your Smart charger. Safe charging begins automatically, and no separate balance lead is needed.



Data Rich
Data Rich

An integrated microchip allows each Smart G2 battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready to go out and have fun.



Smart Auto Storage Discharge
Smart Auto Storage Discharge

Spektrum Smart G2 batteries practically take care of themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. The results are longer battery life, better performance over the life of the pack and peace of mind that your Smart battery comes maintenance-free. The battery's Auto Storage settings can be changed by the user based on preferences.



Simple and Quick
Simple and Quick

Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum Smart G2 battery to your Smart charger, making charging as simple as plugging in the pack. Charge rate of individual batteries can also be user-customized, allowing you to take full advantage of packs with faster charge ratings. The battery's integrated microchip remembers the last charging rate you set, so the next time you plug it in, these settings will automatically take effect.




IC3<sup>®</sup> and IC5<sup>®</sup> Connectors
IC3® and IC5® Connectors

The innovative Smart connection is made possible by a microchip installed in every battery, which feeds the battery's unique information through a data cable to its IC connector. Spektrum Smart IC3® and IC5® connectors have been designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. IC connectors are also backwards compatible with EC connectors so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart chargers.

Product Specifications

Normal/Standard Charge Rate 1C
Product Width 1.34" (34 mm)
Technology Smart
Hard Case No
Maximum Burst Discharge Rate 30C
Product Application Air
Product Height 0.956" (24 mm)
Battery Voltage 11.1V
Connector Type IC3
Discharge 30C
Maximum Charge Rate 5C
Product Length 4.4" (112 mm)
Battery Balance Connector G2 Smart
Charge Protection Circuitry Yes
Number of Cells 3
Smart Technology G2 Technology
Wire Gauge 12 AWG
Battery Type LiPo (3.7V per cell)
Capacity 2200mAh
Material Soft Case
Application Air
Product Weight 7.936oz (225g)
Roar Approved No
Auto Storage Yes
Normal/Standard Charge Current 2.2A
Watt Hours 24.42
