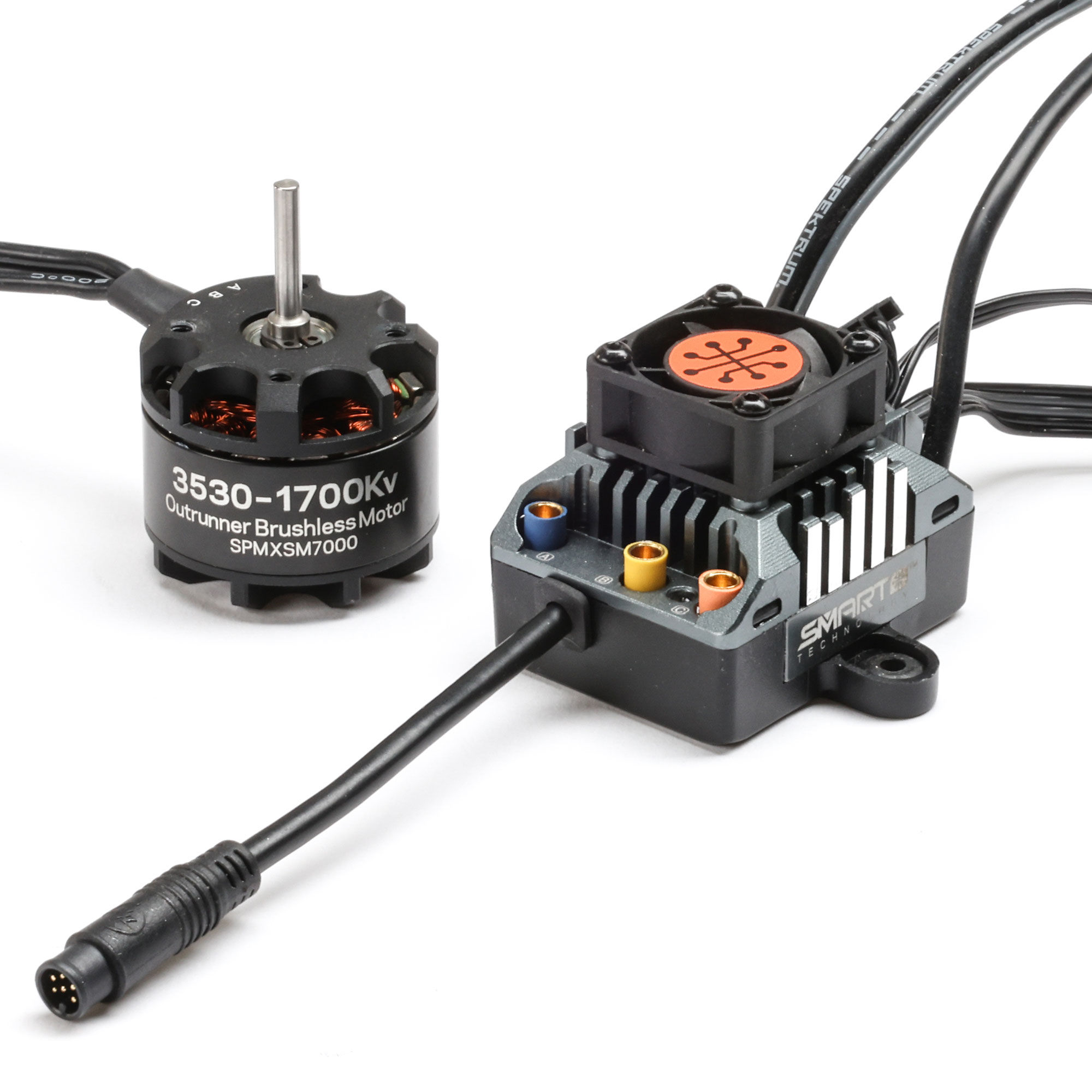

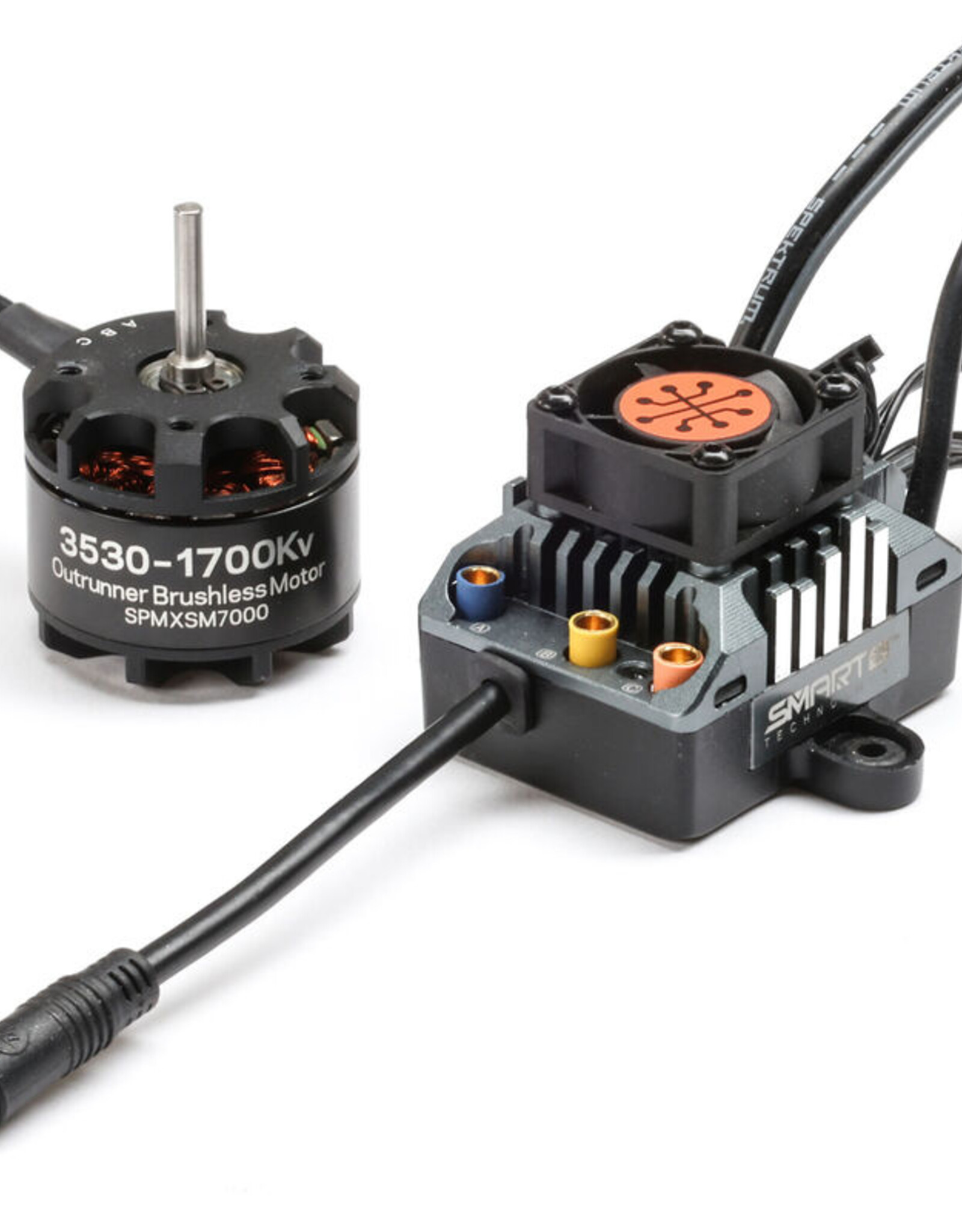

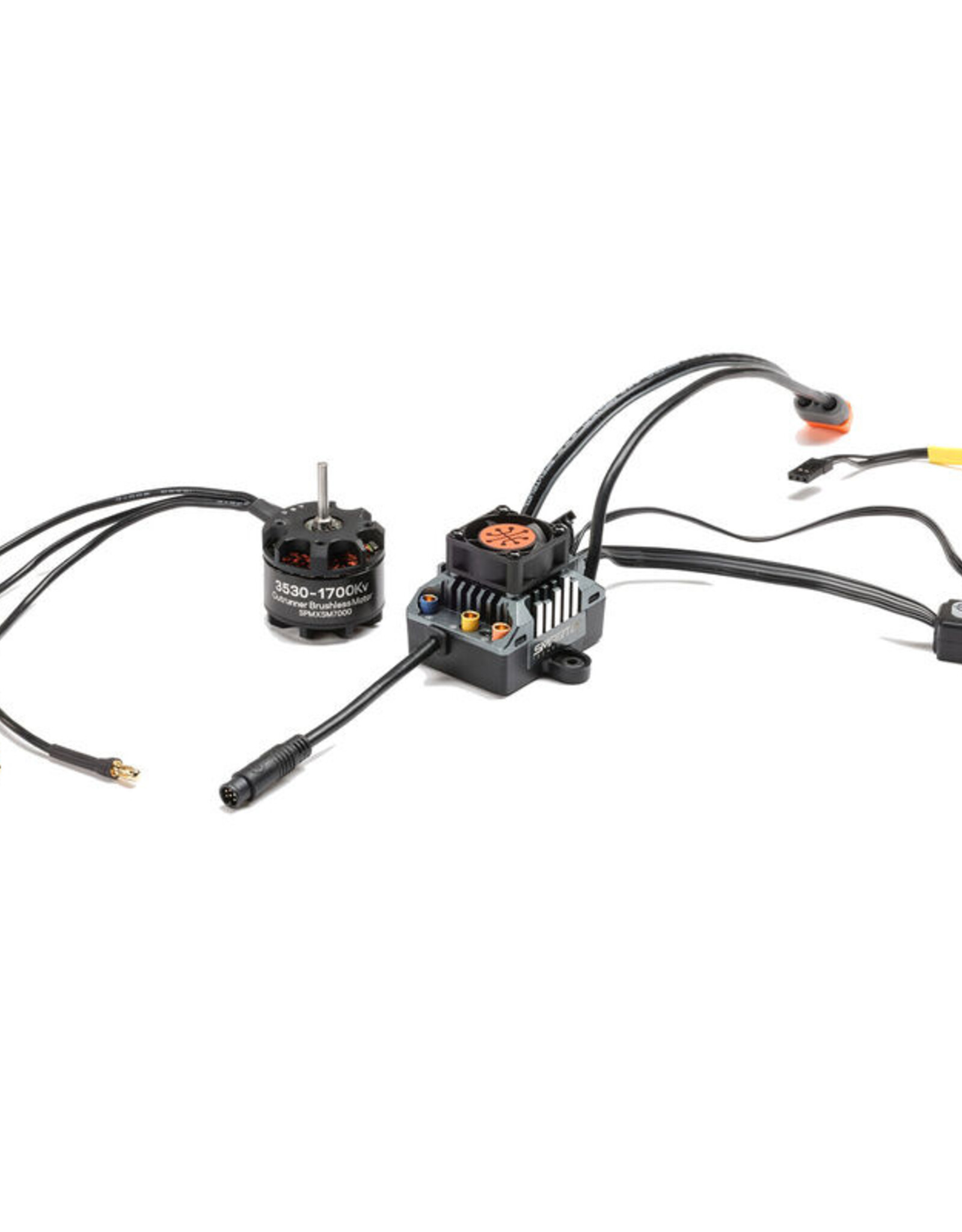

SPMXSEMC23 Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv
| Availability: | Out of stock |
Firma 80A Sensored/Sensorless ESC with Sensorless 1700Kv Outrunner Brushless Motor Combo Smart Sensorless outrunner upgrade system for 1/10th scale crawlers and scalers.
Product Details
In The Box
Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S)1
Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor, 3.175mm (SPMXSM7000)1
Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv Overview
The Spektrum™ 1/10th Scale Smart Sensored-Sensorless ESC + Motor Combo is a great choice for 1/10th scale crawlers and models running on 2S – 4S LiPo power. This 1700Kv motor features a low cog 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed to provide ultra-smooth, low speed control, performance, and high reliability. The motor is preinstalled with 3.5mm gold-plated bullet connectors for easy installation, and perfectly matched for the included Firma 80A Smart ESC. This waterproof, 80A Sensored/sensorless ESC drives your 1/10th scale crawler or scaler through almost any conditions imaginable, with ultra-smooth control, performance, and reliability - while feeding real-time telemetry straight to your Spektrum™ transmitter! This ESC includes the ability to disable drag brake from compatible SPM transmitters.
Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv Features
- Smart All-In-One Telemetry
- Enable/Disable Drag Brake From Compatible Spektrum Transmitters
- Fast, Powerful 32-Bit ARM M4 Processor
- Multiple Programming Options
- Multi-Point Protection
- Waterproof (See Instructions For Details)
- 2-4S LiPo Power Compatible
- 12-pole Outrunner
- 3.175mm Output Shaft
- Pre-installed 3.5mm Gold-plated Bullet Connectors
Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv Product Specs
- Amperage80A
- Auto CutoffYes
- BEC Voltage6V/7.4V at 6A
- Connector Type3.5mm Bullet, IC3
- ESC TypeSensored Brushless
- ForwardYes
- Input Voltage2-4S LiPo
- LiPo Compatibility2S, 4S, 3S
- Low-Voltage Cutoff ProgrammableYes
- Maximum Burst Current360A
- Motor Limit4S less than 2000Kv, 3S up to 2500Kv
- Number of Poles12
- Overload ProtectionYes
- ReverseYes
- RPM/Volt (Kv)1700Kv
- Shaft Diameter3.175" (81 mm)
- Shaft Length18.5" (470 mm)
- Technology Smart
