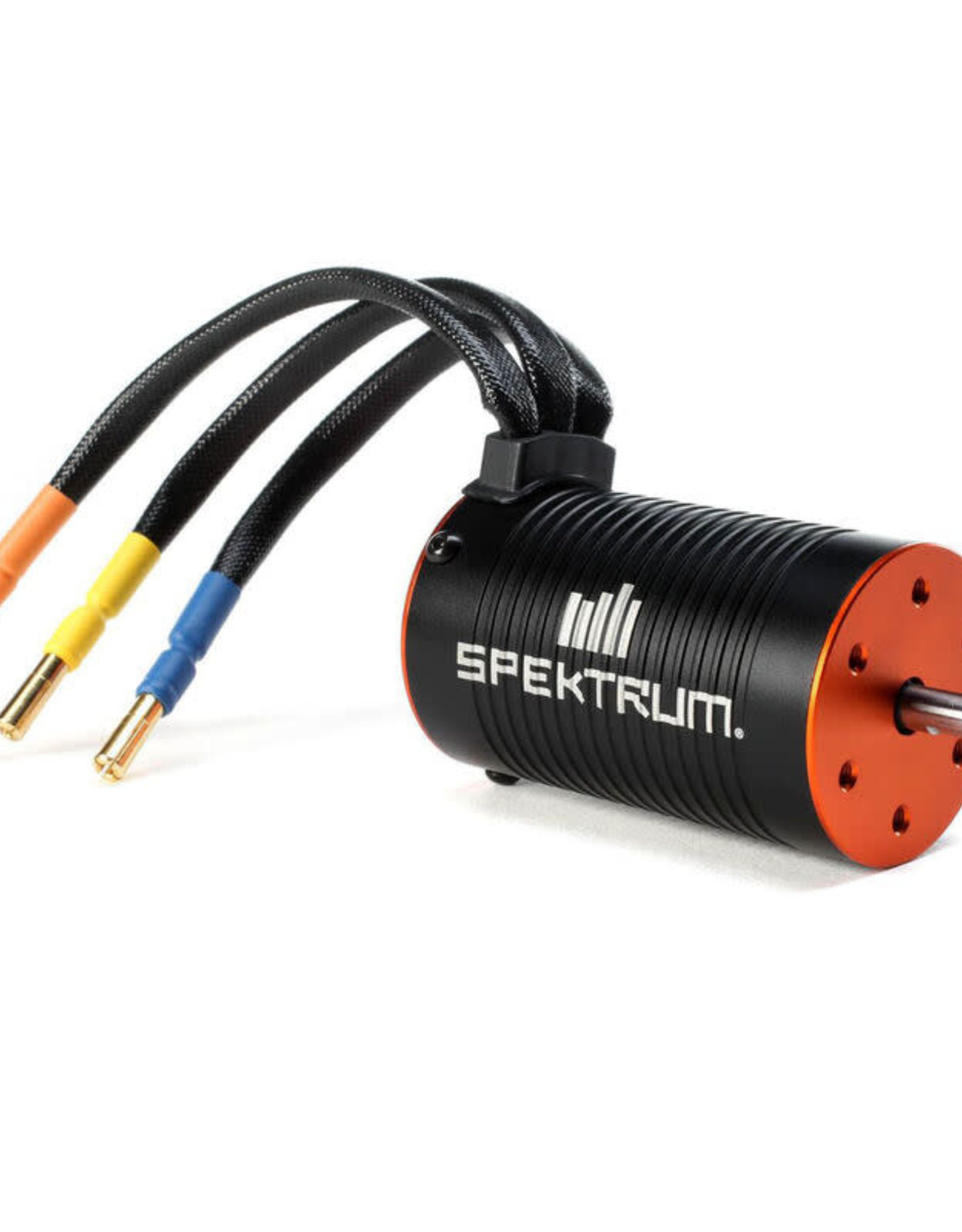

SPMXSM1300 Firma 3300Kv Brushless Motor
| Availability: | In stock (1) |
Key Features
- 4mm Gold Plated Bullet Connectors
- Brushless Non-Sensored Design
- Can be Powered by 2-3S LiPo or 4-9 Cell NiMH Batteries
- 1/8" (3.175mm) Alloy Steel Output Shaft
In The Box
- Firma 3300Kv Brushless Motor
Needed to Complete
- 85A ESC
Product Specifications
| Connector Type | 4mm Bullet |
| Efficiency | 82% |
| Motor Design | Inrunner |
| Bushing Or Bearing | Bearing |
| Input Voltage | 6 – 12.6V (2-3S LiPo, 4-9 NiMH) |
| Mounting Dimensions | Same as 540 and 550 size brushed motors |
| Recommended Speed Control | Spektrum Firma 85A Smart ESC |
| RPM/Volt (Kv) | 3300Kv |
| Sensored | No |
| Application | 1/10 scale 4WD, 2WD, and on-road models running 2S – 3S LiPo |
| Number of Poles | 4 |
| Output | 430W (2S) |
| Product Weight | 7.05oz (200g) |
| Shaft Diameter | 0.125" (3 mm) |
| Maximum Continuous Current | 33A |
| Motor Type | Brushless |
| Outer Diameter | 1.47" (37 mm) |
| Motor Class | 1/10 Scale |
| Motor Size | 3652-3300Kv |
| Product Length | 2.04" (52 mm) |
