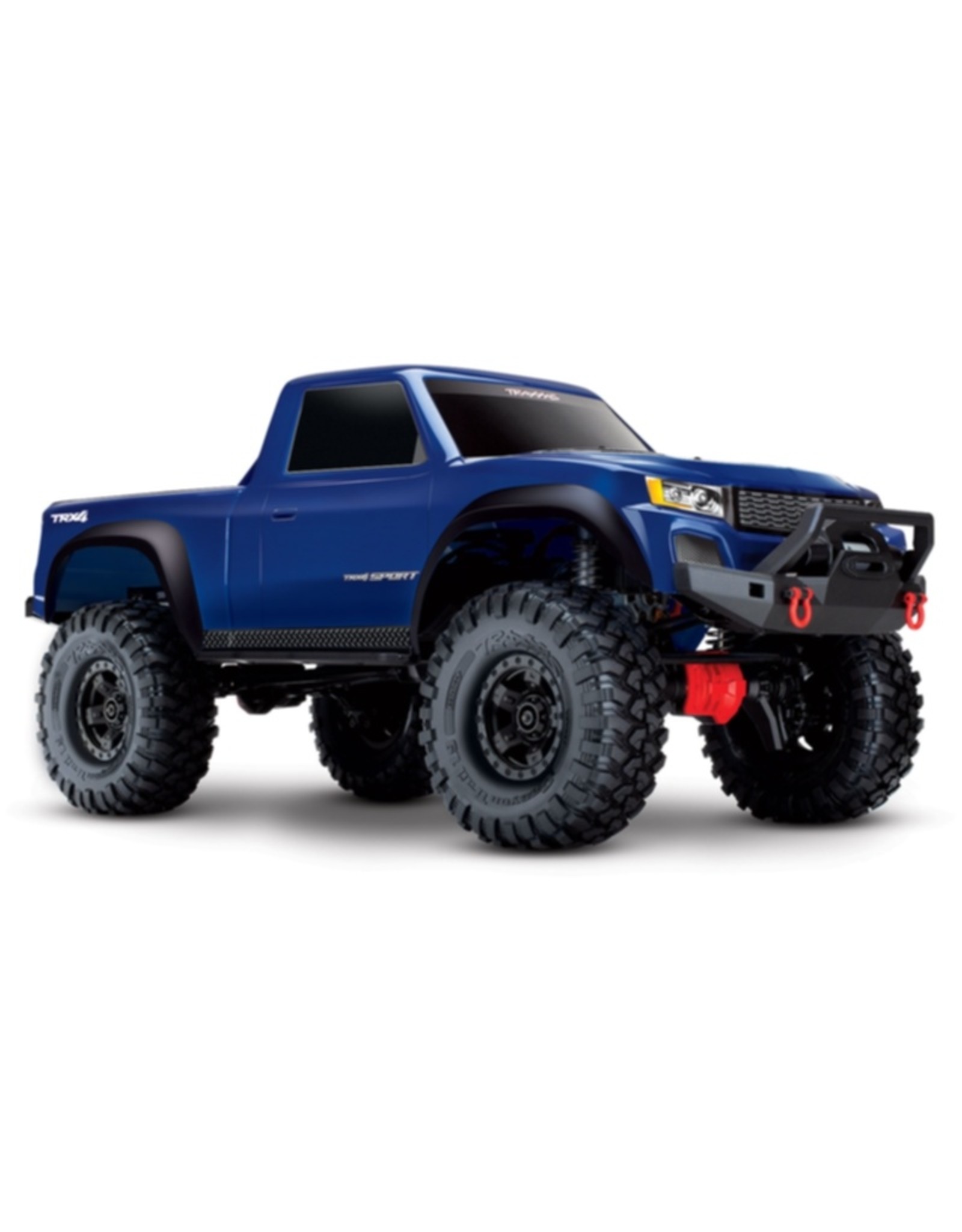

TRA82024-4 1/10 Scale 4X4 TRX-4 Sport Blue

$369.99
Availability: Out of stock

LINK TO TRX4 SPORT EXPLODED VIEW

Features

  • Tough, Lightweight Pickup Truck Body
    • Low profile bumpers for increased clearance
    • Red differential covers and D-rings
  • Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode — forward / brake / reverse
      • Race Mode — forward / brake / no reverse
      • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set® one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
    • Two stage low voltage protection (LVD)
  • Titan 550 Motor
    • Powerful Titan™ 21T reverse rotation motor with internal cooling fan
    • Precise preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • TQ™ 2.4GHz 2-Channel Radio System
    • Ergonomic transmitter with internal antenna
    • Traxxas #6519 3-channel micro receiver with fail-safe security
    • Patented O-ring sealed watertight receiver box keeps the micro receiver dry

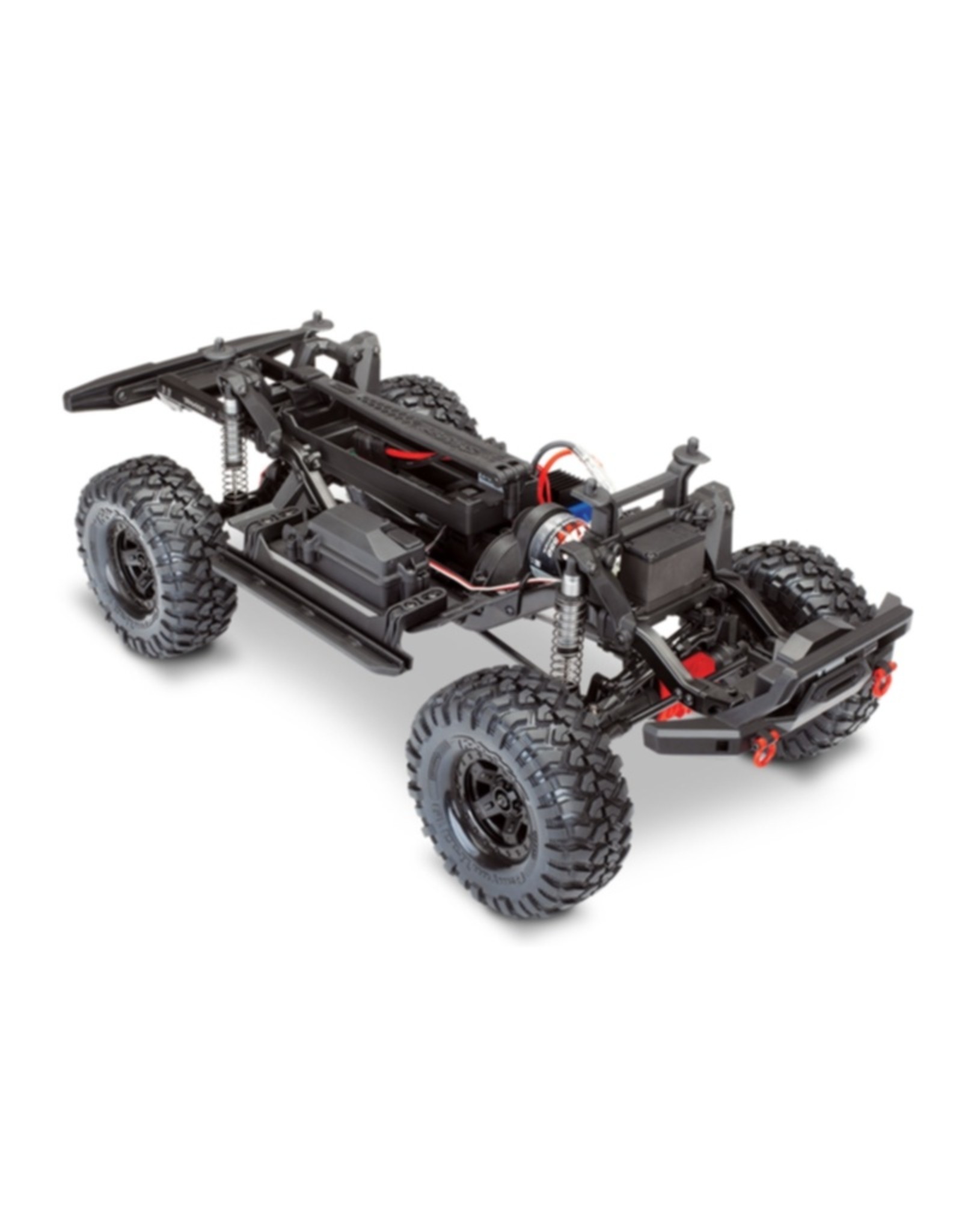

  • Rigid Steel Frame
    • 1.5 mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
    • Adjustable rear shock tower positions for SWB and LWB configurations
    • Bumpers adjust fore and aft
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6 mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Spool-locked front and rear differentials
    • Steel gear transfer case
  • Transmission
    • Single-speed with steel gears
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front — 3 link with panhard
    • Rear — triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5 mm diameter steel link rods with 4 mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Wheels and Tires
    • Rugged black 5-spoke wheels
    • Pre-mounted 1.9” Canyon Trail tires with trail-tuned foam inserts
    • Trail tuned S1 rubber compound
    • 12 mm steel hex
  • Sealed Ball Bearings
  • Hex Hardware with Rust-Resistant Black Oxide Coating
  • Requires Battery and Charger (Sold Separately)

Model Specs

Model Name: TRX-4 Sport
Model Type: Trail / Crawler
Model Skill Level: 1
Scale: 1/10
Weight: 5.79 pounds (2.63 kg)
Length: 21.93 inches (557 mm)
Width: 9.78 inches (249 mm)
Front Track: 9.78 inches (249 mm)
Rear Track: 9.78 inches (249 mm)
Height:

9.47 inches (241 mm)

Wheelbase: 12.28 inches (312 mm)
Center Ground Clearance: 3.14 inches (80 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Spool (no differential)
Gear Pitch: 32 pitch
Servo(s): 2075X metal gear, digital high-torque waterproof
Radio System: TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm

Motor Specs

Motor Name: Titan® 21T Reverse Rotation
Motor Type: High-torque brushed motor
Motor Weight: 8.47 ounces (240 g)
Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter: 1.53 inches (39 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Bullet

ESC Specs

ESC Name: XL-5™ HV
ESC Type: Brushed
ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight: 2.60 ounces (74 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 14 gauge
