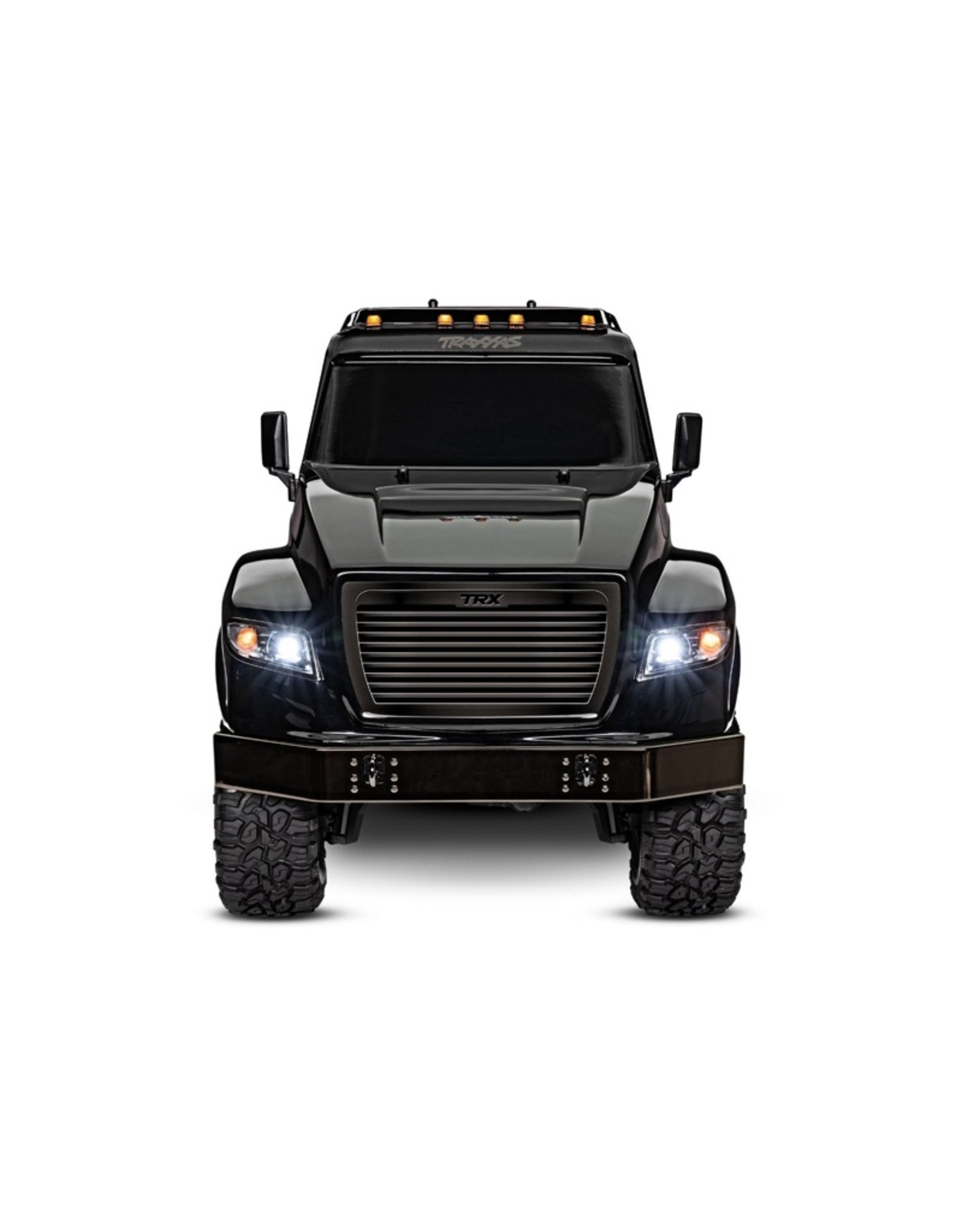

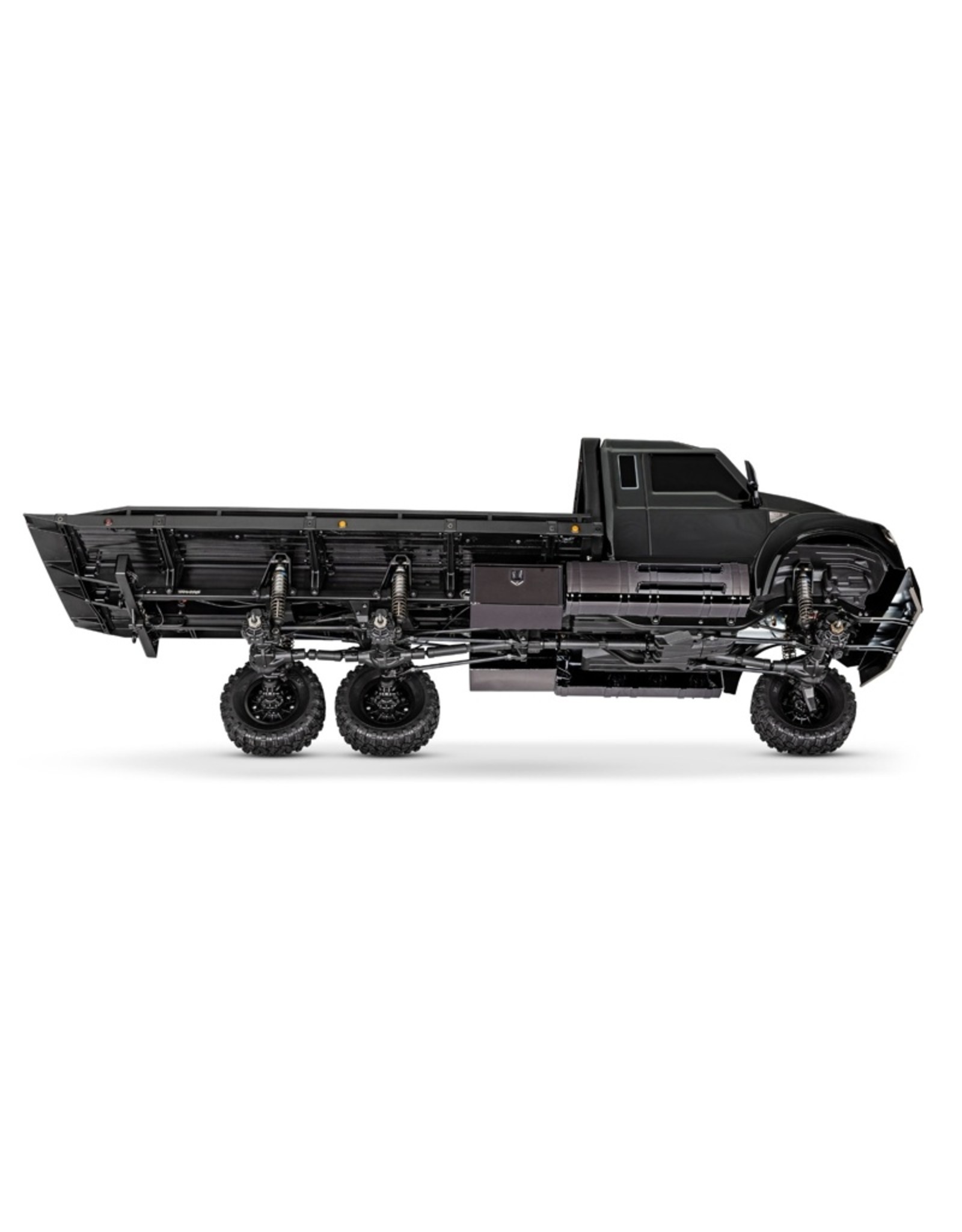

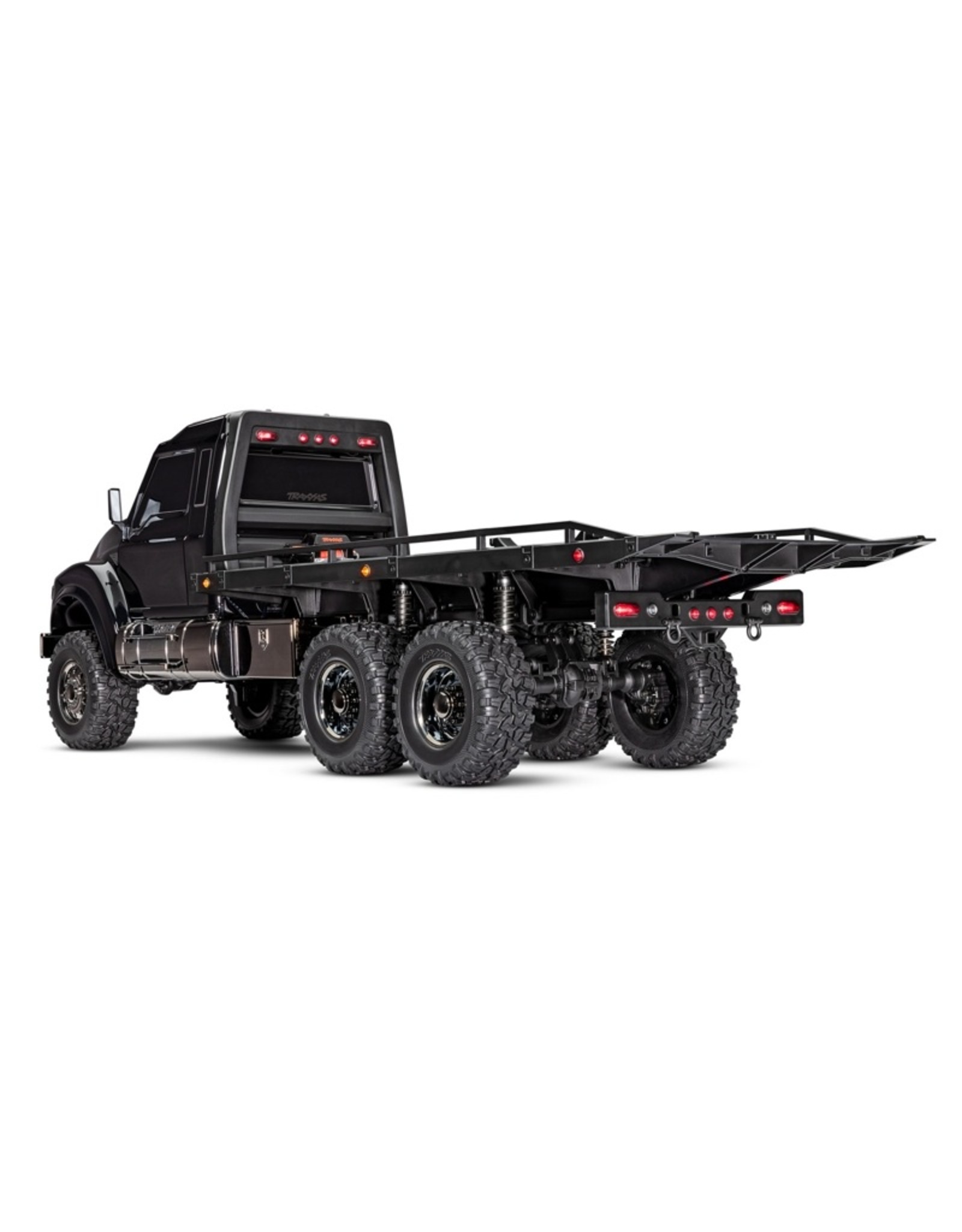

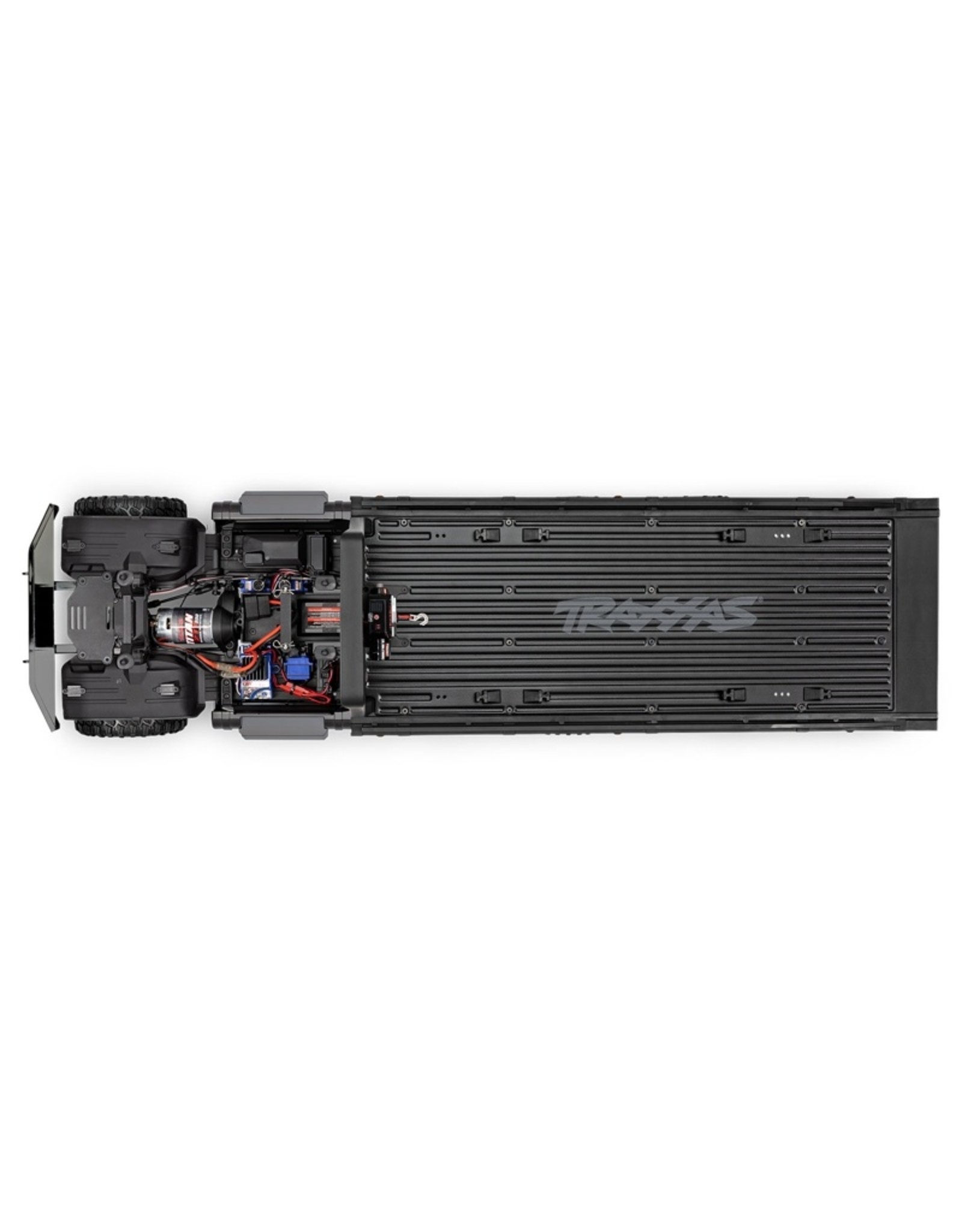

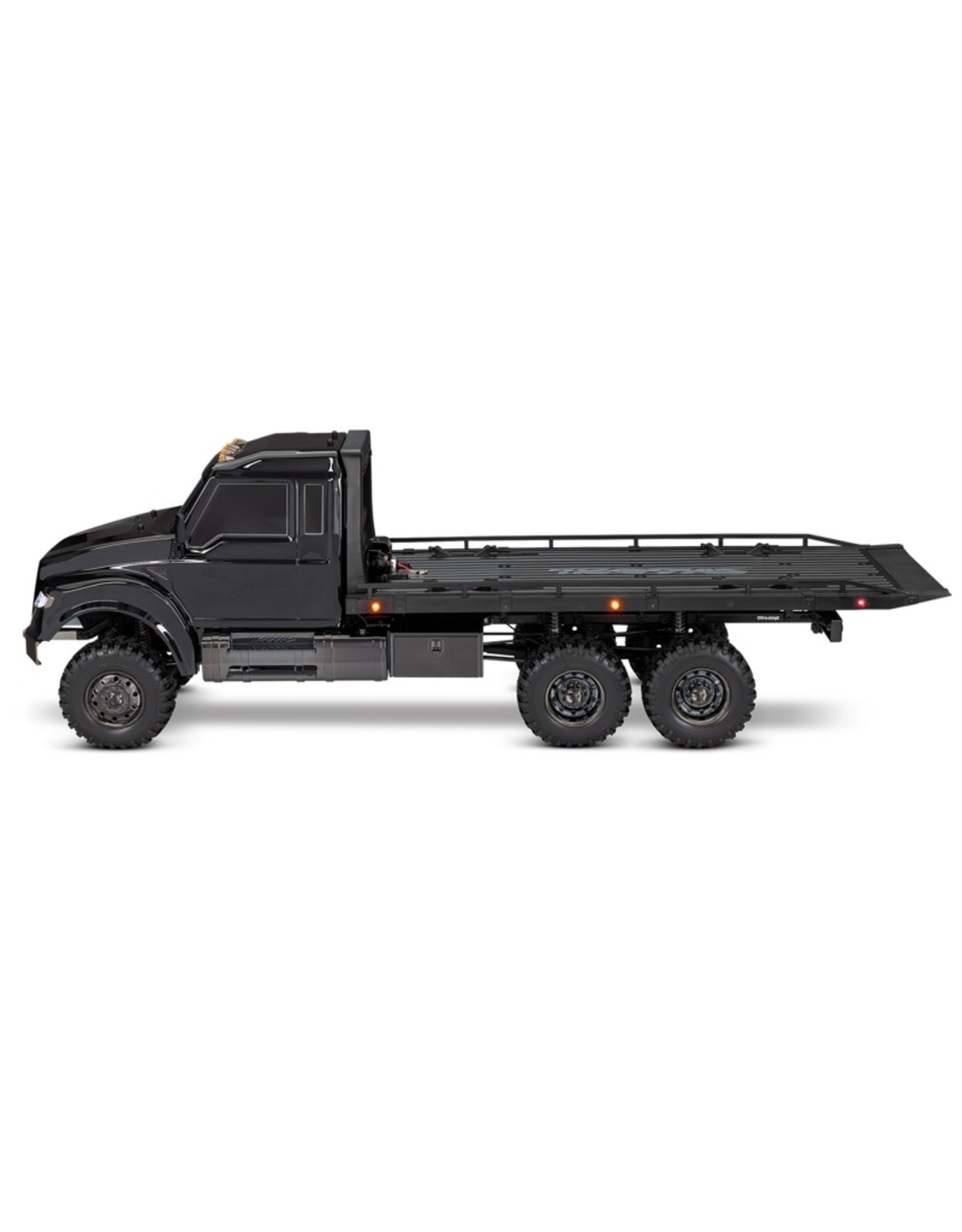

TRA88086-84 TRX-6 Ultimate RC Hauler WITH Winch

$699.99
Availability: In stock (1)

Based on the hugely capable TRX-6 platform, the RC Hauler is the biggest and baddest rig in the TRX lineup. The tough looks are backed up with even tougher performance. The rear bed features a working electric winch, adjustable wheel chocks, and tie-down bands to haul and display 4-Tec® models with style. A highly detailed LED lighting system and black-over-black chrome body accessories give the Hauler a tough, menacing look. The Ultimate RC Hauler is built Traxxas Tough with portal axles, high-low transmission, and T-Lock remote locking differentials. When you're ready for big-scale RC fun, nothing comes close to the Traxxas Ultimate RC Hauler.

Features

  • Large-Scale RC Hauler Rig Body
    • Molded black chrome scale details
      • Fuel tanks, tool boxes, side rails, unique bumpers
    • Molded side mirrors and roll bar
    • Authentic decals
    • Full Nylon composite wheel wells
    • Detailed multi-piece hauler bed with adjustable wheel chocks
  • Installed LED Light Kit
    • Molded headlights with amber marker lights
    • Clearance and marker lights on roof, roll bar, and hauler bed
    • Tail lights integrated into rear bumper
    • Sealed waterproof design
    • 25 individual LED lights
    • Regulated voltage for consistent and reliable power output
  • Pro Scale® Winch
    • Detailed scale appearance
    • Rugged waterproof design
    • 10-pound towing capacity
    • Included 2-channel remote
  • Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode — forward / brake / reverse
      • Race Mode — forward / brake / no reverse
      • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set®  one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
    • Two stage low voltage protection (LVD)
  • Titan® 550 Motor
    • Powerful Titan 21T reverse rotation motor with internal cooling fan
    • Precise, preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • TQi™ 2.4 GHz Radio System
    • 4-channel transmitter
    • 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
    • Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Exclusive Cruise Control feature for extended trail driving
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle endpoints
    • Patented waterproof receiver box with easy-access plug

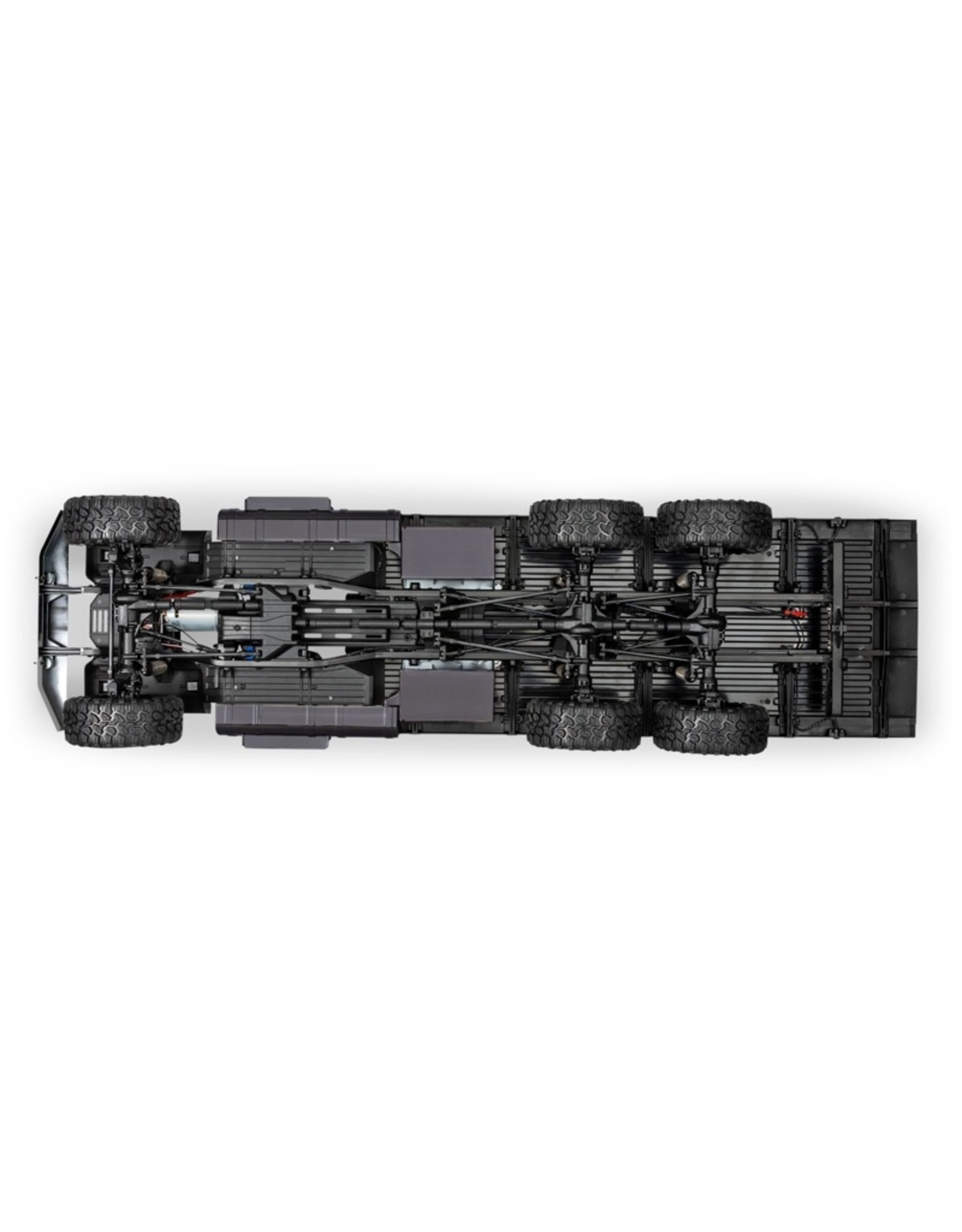

  • Extended Chassis Design
    • Full-length 30” steel frame rails
      • 1.5 mm thick for increased torsional rigidity
      • Rails run from bumper to bumper
    • Extended wheelbase for full length tow bed
    • Bearing-supported intermediate driveshaft
    • Wire management clips integrated into frame rails
  • Drivetrain
    • Full-time shaft driven 6-wheel drive
    • Tough 6 mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Remote locking steel gear differentials with cable-actuation
    • Steel gear transfer case
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Transmission
    • Two speed high/low range with remote shifting
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front — 3 link with panhard
    • Rear — Dual triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5 mm diameter lower steel link rods with 4 mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Wheels and Tires
    • 2.2” black chrome big rig wheels with hub inserts
    • 2.2” Canyon RT all-terrain tires with foam inserts
    • Sticky S1 rubber compound
    • 12 mm steel hex
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating
  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Model Specs

Model Name: TRX-6 Ultimate RC Hauler
Model Type: Trail / Crawler
Model Skill Level: 1
Scale: 1/10
Weight: 10.7 pounds (4.83 kg)
Length: 37.5 inches (953 mm)
Width: 9.8 inches (249 mm)
Front Track: 9.8 inches (249 mm)
Rear Track: 9.8 inches (249 mm)
Height: 11.9 inches (303 mm)

Wheelbase: 23.7 inches (603 mm)
Center Ground Clearance: 3.14 inches (80 mm)
Drivetrain: Shaft-driven 6WD
Transmission: 2-speed high/low, remote shifting
Differential Type: 4-gear, remote locking
Gear Pitch: 32 pitch
Servo(s): 2075X metal gear, digital high-torque waterproof
Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs: 159 mm X 47 mm X 23/26 mm

Motor Specs

Motor Name: Titan® 550 21T Reverse Rotation
Motor Type: High-torque brushed motor
Motor Weight: 8.47 ounces (240 g)
Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter: 1.53 inches (39 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Bullet

ESC Specs

ESC Name: XL-5™ HV
ESC Type: Brushed
ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight: 2.6 ounces (74 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 14 gauge
