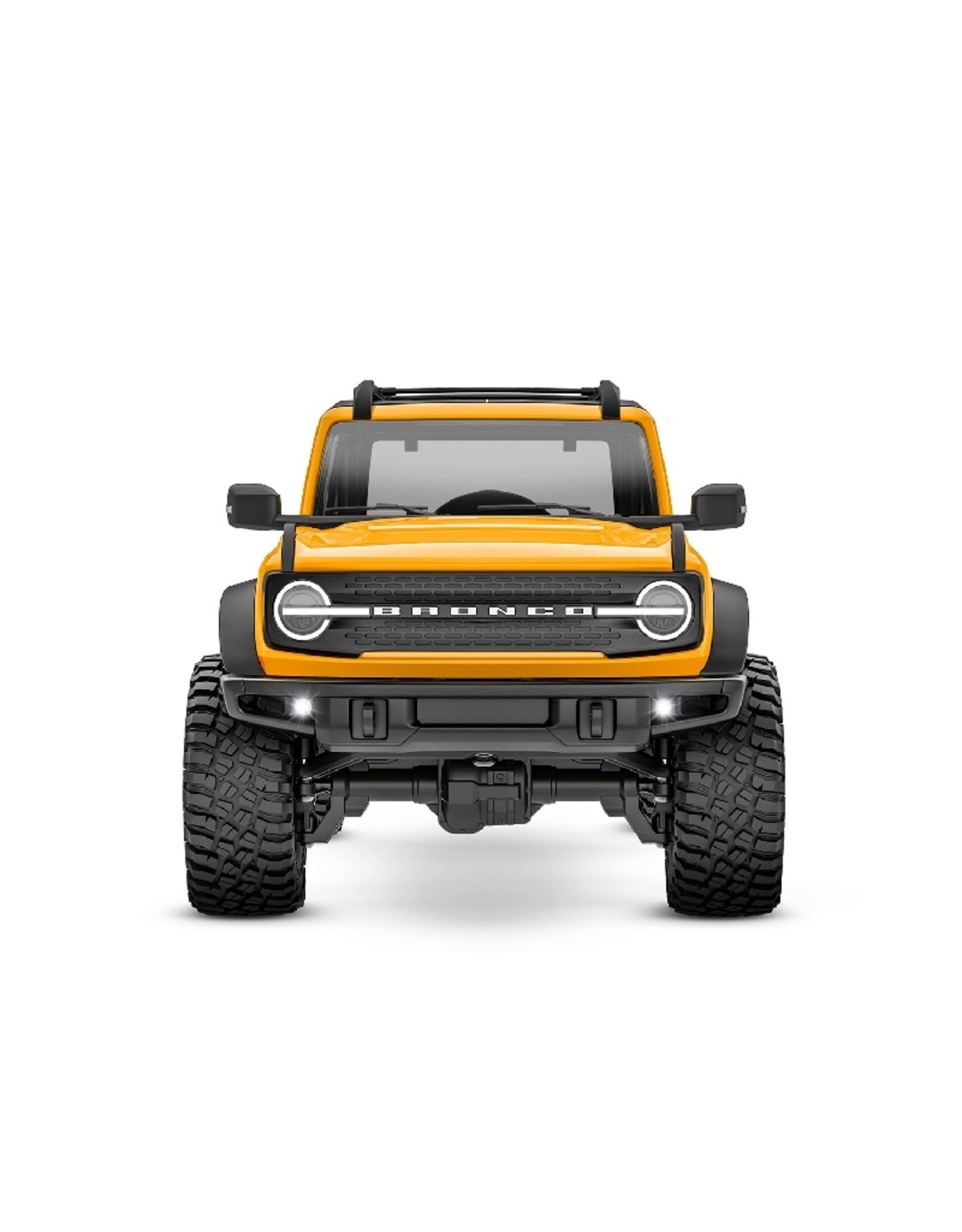

TRA97074-1 TRX-4M Ford Bronco ORNG

$149.99
Availability: Out of stock

Click Here for ordering parts & Accessories For Trx-4m

Link To TRX4M Exploded View

  • Officially Licensed Ford® Bronco Clipless Body
    • Highly-detailed ABS hard body
      • Molded-in color won’t chip or flake
      • Tough fender flares and rock sliders
      • Realistic side mirrors, door handles, & wipers
      • LED bumper lights
    • Heavy-duty latching clips
      • Hold tightly on the trail
      • Release in just seconds
  • ECM-2.5 Electronic Control Module
    • Incorporates ESC, receiver, and LED controller in one chassis
    • Fully waterproof for all-weather fun
    • Three drive profiles
      • Sport Mode — forward / brake / reverse
      • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set® one-button setup
    • Built-in Pro Scale® LED functionality
    • Two stage low voltage protection (LVD)
    • Motor overload protection
  • TQ 2.4 GHz Transmitter
    • Full-size 2-channel transmitter
    • All-day comfort with precise long-range control
  • Titan® 180 87-Turn Brushed Motor
    • Fixed gear mesh doesn’t require adjustment
    • Forward mounting position for improved crawling dynamics
  • Heavy-Duty Steel Ladder Frame
    • Deep C-channel design
    • Thicker center section for maximum rigidity
    • Rails run from bumper to bumper
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Solid steel axles
    • Spool-equipped front and rear axles
    • Heavy-duty CV center driveshafts
  • Low-CG Battery Tray
    • Concentrates weight lower for improved stability
    • Wide rubber strap secures battery in place
  • Optional Transmission Ratios (sold separately)
    • Optional Low Range or Speed Gearing transmissions
    • Modular design swaps out in minutes
  • Steering
    • Heavy-duty 2065T steering servo
      • Metal main gear
    • Superior 45° steering angle
    • Direct steering (no servo saver)
  • Suspension
    • Triangulated 4 link front and rear
    • Heavy-duty rod ends
  • Oil-Filled GTM™ Shocks
    • Provides smooth controlled damping
    • Realistic driving body movements
    • Adjustable pre-load spacers
    • Easily refreshed with available rebuild kits
  • Wheels and Tires
    • Highly-detailed 1″ wheels
      • 7 mm hex
    • Canyon AT tires
    • Trail-tuned rubber compound
  • Battery and Charger Included
    • High-capacity 2-cell LiPo battery with iD®
      • 7.4 volts
      • 750 mAh for over an hour of run time
    • 2-amp USB-powered charger
    • iD® technology for faster, safer charging
  • Low-Maintenance Self-Lubricating Bushings
  • Durable Hex hardware



Model Specs

Model Name: TRX-4M Ford Bronco
Model Type: Trail / Crawler
Model Skill Level: 1
Scale: 1/18
Weight: 1.03 pounds (468 g)
Length: 10.3 inches (262 mm)
Width: 4.9 inches (124 mm)
Front Track: 4.9 inches (124 mm)
Rear Track: 4.9 inches (124 mm)
Height: 4.6 inches (117 mm)
Wheelbase: 6.1 inches (155 mm)
Center Ground Clearance: 1.12 inches (29 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Single speed direct drive
Differential Type: Locked spool
Gear Ratio (Internal): 11.38
Servo(s): 2065T
Radio System: TQ 2.4 GHz 2-channel transmitter
Battery Compartment Specs: 51 mm X 31 mm



Motor Specs

Motor Name: Titan 180
Motor Type: 87-turn brushed motor
Motor Weight: 1.16 ounces (33 g)
Motor Length: 1.66 inches (42 mm)
Motor Diameter: .81 inches (21 mm)



ESC Specs

ESC Name: ECM 2.5™
ESC Type: Brushed
ESC Case Size: 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
ESC Weight: .92 ounces ( 26 g)
